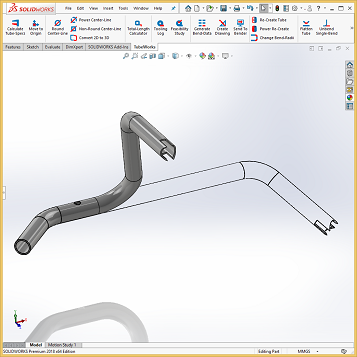

Extracting the necessary information such as bend angles and rotations from an imported part (e.g. IGS, Step, or Parasolid), for quotation or production purposes, is a time consuming task.TubeWorks automatically extracts key manufacturing information, including bending data, from both native SOLIDWORKS models and common IGES, and ParaSolid. Once the LRA data is obtained from the geometry, the software can send the data directly to your CNC bender.Furthermore it creates a Flat Configuration of the bend Tube with additional automatic functionalities to deduct length due to elongation after bend.Key Features include: Extract Tube Specification Automated Centreline Creation Fully Searchable Tooling Log Tooling Recommendation Automated XYZ Creation Automated LRA (YBC) Creation Centreline Total Length Calculator Automated 2D Drawing Generation Automated Conversion of Imported Tube models into Native SolidWorks models for CLR modification Flatten Tube Configuration Automated Length Deduction Springback Calculations
