Solution Partner Product

CamTrax64

Camnetics, Inc.

CamTrax64 helps the designer create solid models of virtually every type of cam with the required dynamic motion control parameters. Standard cam types include cylindrical (barrel), plate (disk) and linear. Choose the follower type: on center translating, off center translating and oscillating.

parter_logo

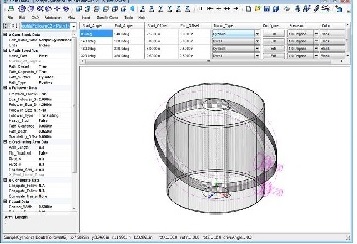

CamTrax64 helps the designer create solid models of virtually every type of cam with the dynamic motion control parameters your system requires. During the design, CamTrax64 generates charts when linked with Excel and adds a profile list to your drawing. CamTrax64 is for win32 and win64 operating systems. CamTrax64 standard cam types include cylindrical cams, plate (aka disk) cams and linear cams. Choose the follower type that the design requires; on center translating, off center translating and oscillating (swinging arm). Selecting different motion synthesis is a snap with CamTrax64. Choose between virtually any standard cam motion with a couple mouse clicks. With Excel the designer can analyze the cam motions and compare different motion synthesis. Don't have Excel? Output can also be to a text file! Charted are displacement, velocity, acceleration, pressure angle, cam shaft torque, radius of curvature, contact stress and normal force.

Features

  • Linear translating and oscillating cams
  • A Fabrication module for NC control allowing the path to be cut with a smaller end mill
  • On and off center translating followers
  • Create various data sheets in text, CSV and Excel files

Benefits

  • Create models that would be next to impossible to create manually
  • Intuitive and easy to use, yet powerful
  • Very affordable
  • Charts and animations to help understand the motions
  • Helps the user understand how changes to the cam parameters reflect on the motion

Resources

Pdf

CamTrax64™ helps the designer create solid models of virtually every type of cam with the required dynamic motion control parameters.

Download
partner_logo
OUR PARTNER

Camnetics, Inc.

Camnetics, Inc. is dedicated to improving the way automation components are designed. Our gear and cam software products provide the designer with tools to create solid models of drive components in seconds rather than hours or days. Camnetics, Inc. has been a SOLIDWORKS Solution Partner since 1998.
