Component Management Software, or CMS, is a CADCAM software application dedicated to the production and manipulation of DSTV CNC file output format. The DSTV NC file format is a German public file format developed specifically for the purpose of communication between design software and CNC Machines typically used in the fabrication of structural steel. The DSTV File format has become the North American as well as international standard for communicating with Beam lines, drill lines, coping machines as well as angle lines. It is also used by a variety of plate cutting tables and plasma machines.

Features

  • 2D/3D Stand alone graphical DSTV-NC file Creator, Viewer, Editor, and Manager

  • Reads MBS output and converts it to DSTV

  • Converts 2D plate DXF files to DSTV files

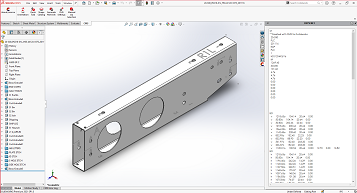

  • Works as a plug-in add on to SOLIDWORKS

Benefits

  • Save time creating CNC data

  • Open, modify and generate CNC files,

  • Reduces time from detailing up to fabrication

  • Batch Process capabilities

  • communicates with Beam lines, drill lines, and coping machines
