Solution Partner Product

GearTeq

Camnetics, Inc.

GearTeq provides the designer with advanced tools for creating solid models of drive components and assemblies. More than a library program, GearTeq creates each part model with its specific requirements, just as a designer would, but takes seconds rather than hours or days.

parter_logo

GearTeq is a gear component design add-in. Create standard and non-standard gear components. Some of GearTeq's other features: Modifying SOLIDWORKS parts created by GearTeq is very easy 3D wire frame with some surface shading Create XY outputs of the involutes points in text, CSV and Excel files Involute profile modification using linear or parabolic deviation for spur and helical gears Automatic balance of addendum modification for spur and helical gears Deviation chart for DIN splines, hub space width/shaft tooth thickness fit Programmed on a platform that will allow greater enhancements in the future

Features

  • Create solid models of spur, helical, rack and face gears, bevel gears, worm gears, involute splines, timing belt pulleys, chain sprockets and V-belt pulleys.
  • Automatically create assemblies in SOLIDWORKS with proper mating
  • Work on multiple types of components in the same assembly
  • Multiple gears created as a single SOLIDWORKS part
  • Internal splines can be used as a bore on all components

Benefits

  • Ten standard planetary gear systems are available with a few clicks

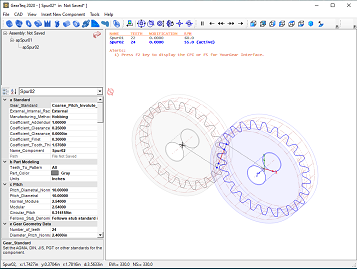

  • On-screen animations to help the user visualize the working gears
  • A description of each parameter is in the lower section of the property grid
  • Warnings when GearTeq detects something in the design that may not be proper
  • Modifying SOLIDWORKS parts created by GearTeq is very easy

Resources

Pdf

GearTeq Data Sheet

GearTeq™ provides the designer with advanced tools for creating solid models of drive components and assemblies.

Download
partner_logo
OUR PARTNER

Camnetics, Inc.

Camnetics, Inc. is dedicated to improving the way automation components are designed. Our gear and cam software products provide the designer with tools to create solid models of drive components in seconds rather than hours or days. Camnetics, Inc. has been a SOLIDWORKS Solution Partner since 1998.

926 Autumn Woods Lane

Oregon, 53575

US

+1 (608) 835-2378
support@camnetics.com http://www.camnetics.com
