Solution Partner Product Gold

HighRes Basic, Advanced and Industrial for SOLIDWORKS

ReverseEngineering.com

Connect your FARO EDGE HD scan arm or Romer Absolute scan arm to SOLIDWORKS to capture features, point clouds or mesh data. With the ReverseEngineering.com ADD-IN, you will no longer need multiple software solutions. Simply digitize features, reverse engineer, or inspect directly in SOLIDWORKS.

parter_logo

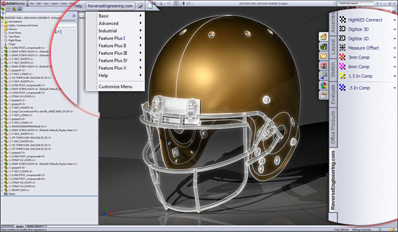

CAD Integrated Reverse Engineering software (CADIRE).The first of a three-product software suite, Basic offers the most affordable entry-level reverse engineering product in the marketplace.In addition to Basic, there is also Advanced (mid-level), Industrial (advanced), and two power feature plug-ins, ControlWorks, and AxisWorks. Key Advanced features include Set 3 Point Axis; Track X, Y, Z; and create 3D/2D options such as: Points, Line, Closed Line, Open Spline, and Closed Spline. Ease of use is assured by simply picking the imbedded HighRes Menu within your SOLIDWORKS Toolbar. . Windows 2000/XP compatible. Basic, Advanced, and Industrial are trademarks of HighRes, Inc. Other company names and trademarks or product names are trademarks or registered trademarks of their respective companies.

Features

  • CAD Inspection
  • "Smart Digitizing" features dramatically decrease the overall reverse engineering time of traditional methods, resulting in a significant increase of productivity on the shop floor
  • Build manufacturable 3D wireframe models from your physical mold, model, or part
  • Nine reverse engineering features allow you to perform freeform 3D sketch and 3D draw applications with a 3D portable CMM such as FARO USB, FARO LASER Tracker SI, MicroScribe, POLHEMUS and Romer

Benefits

  • By offering tier-based, seamless choices, engineers are no longer restricted to purchasing complete feature sets when they only need an entry-level product.
  • HighRes provides seamless, advanced 3D reverse engineering choices to engineers, manufacturers, mold makers, designers, film makers, animators, and artists worldwide.
  • Full credit software upgrade program available upon request

Resources

Pdf

SCHUTT Sports

Football helmet maker whips product line into shape with ReverseEngineering.com and SOLIDWORKS software

Download
Pdf

ReverseEngineering 2017

REVERSE ENGINEERING plug-in direct in SOLIDWORKS with the ReverseEngineering.com ADD-IN, you will no longer need multiple software solutions. Simply digitize, reverse engineer, measure, or inspect …

Download
partner_logo
OUR PARTNER

ReverseEngineering.com

ReverseEngineering.com connects portable CMMS and laser scanners directl to SOLIDWORKS. The add-in quickly and easily collects digitized data from Faro scan arms and Romer Absolute arms direct into SOLIDWORKS as easily modifiable intelligent parametric sketches. TLIDAR E-57 data format is supported.

PO Box 2746

La Jolla, 92038

US

+1-(858) 488-5231
sales@reverseengineering.com https://reverseengineering.com/
