Solution Partner Product

Simpleware Design Link

Synopsys Inc. (Simpleware Product Group)

Synopsys technology is at the heart of innovations that are changing the way people work and play. Self-driving cars. Machines that learn. Lightning-fast communication across billions of devices in the data sphere. These breakthroughs are ushering in the era of Smart Everything...

parter_logo

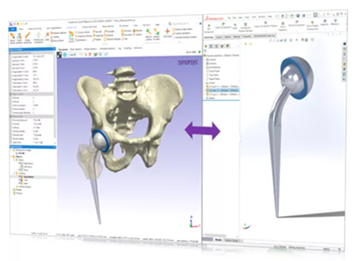

The Simpleware product group at Synopsys develops an industry-leading 3D image processing platform for the visualization, quantification and conversion of 3D scan data (MRI, CT, micro-CT...) into high quality design, simulation and 3D printing models. Simpleware software is used in theLife Sciences, Clinical Applications, and Materials & Manufacturing. Easy-to-learn and use, the software offers a robust bridge between the latest imaging technologies and multiple design and simulation applications.Simpleware Design Link allows users of Simpleware software and SOLIDWORKS to harness the power of both software packages and speed up product development workflows. The module eliminates the need to import/export between the two packages. With Simpleware Design Link, updates are passed between SOLIDWORKS and Simpleware with a single click, enhancing iterative product design workflows such as patient-specific implant planning.

Features

  • Seamlessly synchronize model updates between Simpleware Software and SOLIDWORKS
  • Push/pull geometry and/or position/orientation changes as needed
  • Use interactive positioning or comprehensive registration tools to align CAD models within the image data
  • Launch SOLIDWORKS directly from Simpleware
  • Import whole SOLIDWORKS assemblies or individual parts

Benefits

  • Eliminates the need for manual importing, exporting and tracking of models/files.
  • Geometry and position/orientation changes passed automatically for improved accuracy
  • Use a medical regulatory cleared software in your medical device/product design workflows
  • Reduce iterations in the medical device design workflow
  • Efficiently check sizing and positioning of medical devices to patient-specific data

Resources

Video

Bringing Together CAD and Image Data with Simpleware Design Link

Learn about the capabilities of Simpleware Design Link for linking SOLIDWORKS and Simpleware software.

Watch Video
