Solution Partner Product Gold

SolidPlant 3D

SolidPlant B.V.

SolidPlant is a sophisticated plant design solution for SOLIDWORKS. SolidPlant 3D contains a very large set of manufacturer catalogs of pipe components, pumps, valves, gaskets, etc. driven by a Structured Query Language (SQL) Server database that allows specifications to be picked/created.

parter_logo

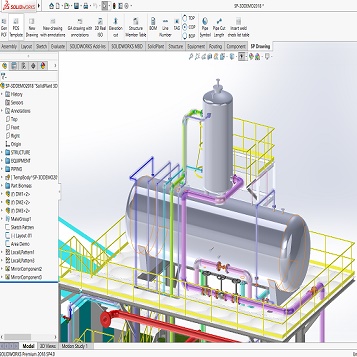

SolidPlant is a sophisticated plant design solution for SOLIDWORKS. SolidPlant 3D contains a very large set of manufacturer catalogs of pipe components, pumps, valves, gaskets, etc. driven by a Structured Query Language (SQL) Server database that allows specifications to be picked / created. Routing is then done on the basis of these specifications. In addition, SolidPlant also includes equipment model and structure templates to put a profile and area in which routing will take place. SolidPlant also has an automatic isometrics drawings generator.

Features

  • Comprehensive catalog list
  • Automated piping/ routing
  • Equipment/ structural design
  • Database-driven
  • Specification creator

Benefits

  • No need to use other specification
  • Common workflow for piping design(ers)
  • No margin for error, sustainable to large projects
  • No need for third-party software

Resources

Pdf

An overview of new features and enhancements in SolidPlant 3D 2018.

Download
Video

This video shows the various ways of pipe routing within SolidPlant 3D.

Watch Video
Pdf

This brochure lists all key features and functionalities in SolidPlant 3D.

Download
Video

Overview of the steel structure features in SolidPlant 3D.

Watch Video
Video

General overview of all major features in SolidPlant 3D.

Watch Video
Video

Intro video of SolidPlant 3D

Watch Video
partner_logo
OUR PARTNER

SolidPlant B.V.

Based in the Netherlands, SolidPlant is a developer in the field of piping and plant design solutions. We are dedicated to developing solutions that integrate with SOLIDWORKS. SolidPlant offers a complete 3D plant design software package that works seamlessly with SOLIDWORKS.

Singel 540

Amsterdam, 1017AZ

NL
