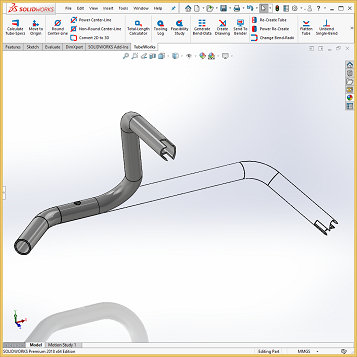

TubeWorks add-in extracts key manufacturing information from native and imported (STEP, IGES, ParaSolid) tubes. Features include automatic generation of CNC bend data with 2D Drawings and unbent configuration for tube laser.
Extracting the necessary information such as bend angles and rotations from an imported part (e.g. IGS, Step, or Parasolid), for quotation or production purposes, is a time consuming task. TubeWorks automatically extracts key manufacturing information, including bending data, from both native SOLIDWORKS models and common IGES, and ParaSolid. Once the LRA data is obtained from the geometry, the software can send the data directly to your CNC bender. Furthermore it creates a Flat Configuration of the bend Tube with additional automatic functionalities to deduct length due to elongation after bend. Key Features include: • Extract Tube Specification • Automated Centreline Creation • Fully Searchable Tooling Log • Tooling Recommendation • Automated XYZ Creation • Automated LRA (YBC) Creation • Centreline Total Length Calculator • Automated 2D Drawing Generation • Automated Conversion of Imported Tube models into Native SolidWorks models for CLR modification • Flatten Tube Configuration • Automated Length Deduction • Springback Calculations
- Extract Tube Specifications from Native or Imported Geometry
- Convert Imported Geometry into native SOLIDWORKS model
- Create CNC bend data and XYZ data in seconds
- Automated 2D drawing Generation
- Unbend tube for Laser
- Fully integrated into SolidWorks
- Fast Response to Customer Enquiries
- Reduced Development Time
- Extremely Easy To Use
- Takes 10 minutes to Master
