Integrating 3D Mechanical and Electrical Design

SOLIDWORKS® High-Tech solutions provide critical capability to connect electronics and mechanical design teams with requirements and project management disciplines, as well as with external partners.

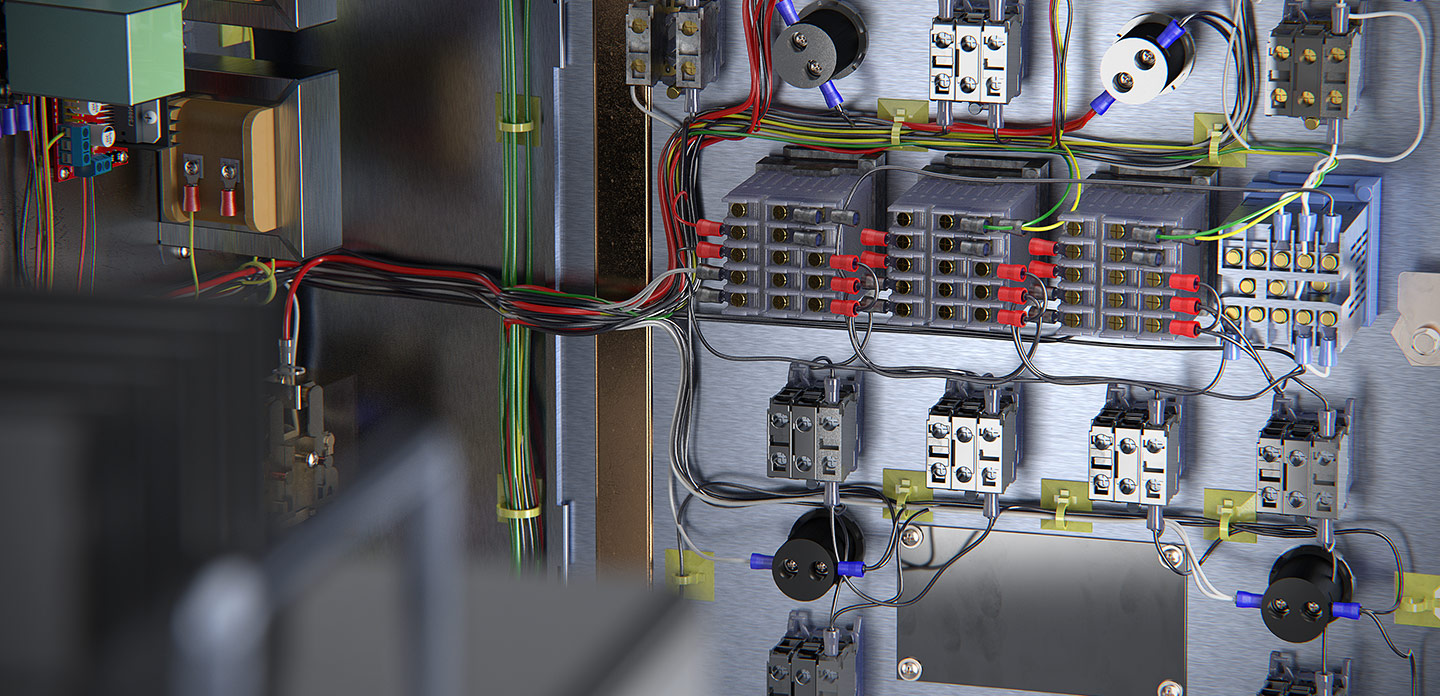

Streamlining IoT Design

The benefits of 3D design have now been expanded to include solutions for connected devices. The SOLIDWORKS ecosystem allows you to design ”smart products” without any boundaries because all tools for designing a mechatronic device now work in sync.

Overcoming Limitations of Electrical Schematics

Electrical design with schematics is much more than a postscript to the mechanical design process. Integrating electrical and mechanical design onto a single 3D platform provides many benefits and opportunities for improvement.

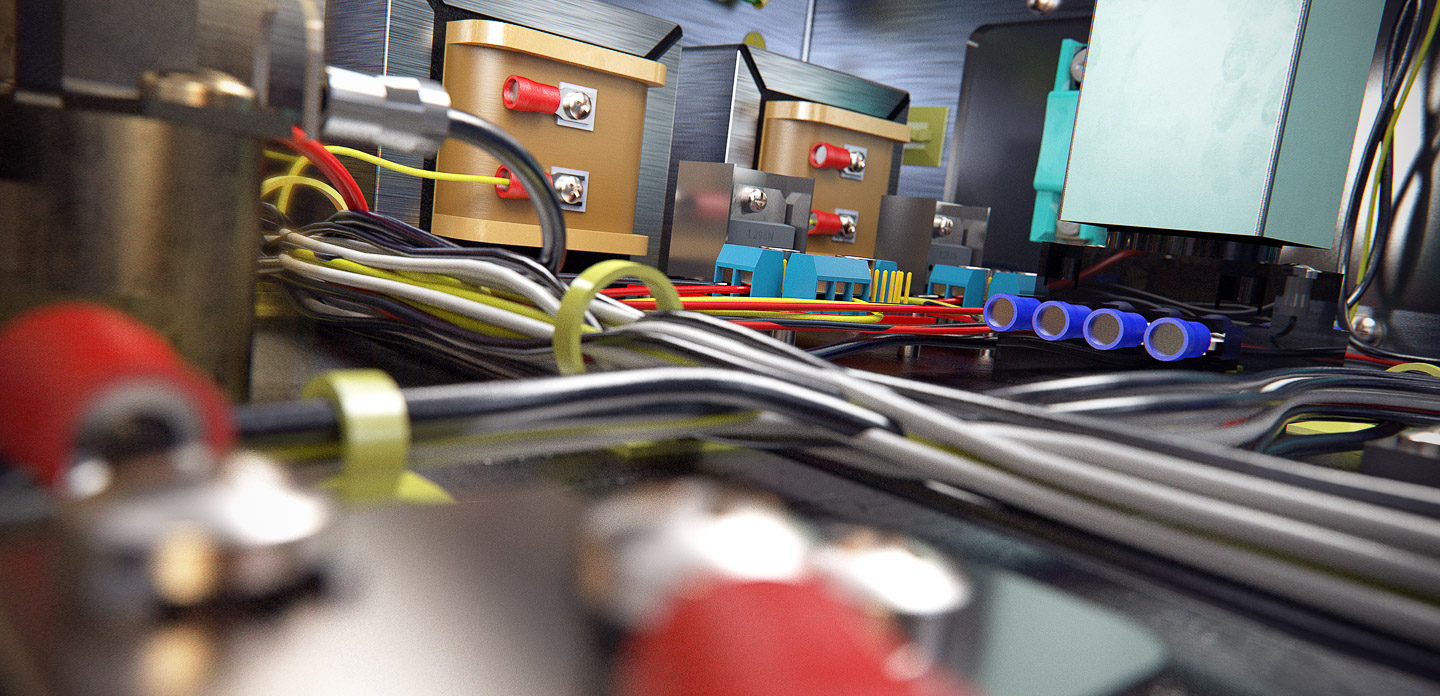

Integrated Mechatronics Design

To develop mechatronic solutions, you need a fully integrated electrical design package that fosters cooperation and collaboration between electrical and mechanical designers, as well as between the design, engineering, and manufacturing departments.

Learn More About Solutions for High-Tech
